Kit Features
Hardware Features:
Mechanical Parameters
-
Dimensions: 67 mm x 37 mm
-
Power Consumption: 1A @ 3.3V
-
Temperature Range: 0 ~ 70 Celsius
-
Temperature Range: 20% ~ 90%
Processor
-
TI DM3730CUSA DaVinci Digital Media Processor, 1GHz ARM Cortex-A8 Core, 800-MHz TMS320C64x+™ DSP Core (pin-to-pin compatible with TI AM3715)
Memory
-
256MByte DDR SDRAM, 166MHz
-
512MByte NAND Flash, 16bit
Input Interface
-
12-bit Camera interface (30-pin FPC connector, support CCD or CMOS camera)
-
1-channel 4-wire JTAG interface (10-pin 1.0mm pitch connector)
-
6 LEDs (programmable status LEDs)
-
2-channel SPI
-
GPMC bus (16-bit data bus, 10-bit address bus, 4 chip-selection signals and several control signals)
-
3-channel 5-wire UARTs
-
1-channel ULPI (USB1 HS)
-
Audio in/out
-
1-channel I2C
-
2-channel McBSP (McBSP1 and McBSP3, McBSP3 is multiplex with UART2)
-
2-channel SD/MMC: MMC1 (8-wire), MMC2 (4-wire)
-
24-bit DSS interface
Mechanical Parameters
-
Dimensions: 165.00 mm x 115.00 mm
-
Input Voltage: +5V
-
Temperature Range: 0 ~ 70 °C
-
Humidity Range: 20% ~ 90%
Audio/Video Interfaces
-
Audio input interface
-
A two-channel Audio output interface
-
A TFT LCD interface, resolution supporting up to 2048*2048
-
4 line Touch Screen
-
Standard VGA interface, resolution supporting up to 1024*768
Data Transfer Interface
-
Serial port:
-
5 line Debug serial port, RS232 voltage (UART1, via DB9 connector)
-
3 line serial port, TTL voltage (UART2, via 6-pin connector)
-
5 line serial port, RS232 voltage (UART3, via 6-pin connector)
-
-
USB port:
-
USB2.0 OTG, High-speed, 480Mbps (Mini-USB connector)
-
Four USB2.0 Hosts, High-speed, 480Mbps (USB A Type)
-
-
SD card slot
-
Ethernet: 10/100Mbps, RJ45 connector
Input Interface
-
BOOT button
-
RESET button
-
Two USER buttons
-
Power indicator
Software
The SBC8140 Single Board Computer is provided with Windows CE 6.0.net BSP and Linux 2.6.32 BSP with steady-going drivers, many of which are all in source code. Please refer to below table.
|
OS |
Item | Feature |
Description |
|
Linux |
Boot |
Version |
X-loader-1.41 U-boot 1.3.3 |
|
Boot Mode |
Boot Linux from SD card, NAND Flash or Ethernet |
||
|
Image update |
Support updating image from SD card or Ethernet |
||
|
Logo update |
Support updating logo |
||
|
Kernel and drivers |
Version |
Linux 2.6.32 |
|
|
File System Format |
ROM/CRAM/EXT2/EXT3/FAT/NFS/ JFFS2/UBIFS |
||
|
Driver |
Serial, RTC, Net, Flash, LCD, Touch screen, VGA, Audio In/Out, SD, USB Host, USB OTG, Key, LED, 2D/3D, Power Management (backlight) |
||
|
File System |
File System Format |
Ramdisk File System, UBI File System |
|
|
function |
Provided Lib (ALSA -lib, tslib, glibc), udev support |
||
|
WinCE |
Boot |
Version |
x-load-1.41, eboot |
|
Boot Mode |
Boot WINCE from SD card or NAND Flash or Ethernet |
||
|
Image update |
Support updating image from SD card or Ethernet |
||
|
System |
Characteristics |
KITL kernel debug, Reboot, Watchdog, RTC |
|
|
Driver |
Serial, RTC, Net, Flash, LCD, Touch screen, VGA, Audio In/Out, SD, USB Host, USB OTG, Key, LED, 2D/3D, Power Management (backlight, PWM, ADC) |
||
|
Application module |
Flash Player plug-in and Flash player |
||
|
MP3/MPEG4/H264 DSP hardware decoder |
Kit Contents
The Embest SBC8140 single board computer is supplied with below contents:
-

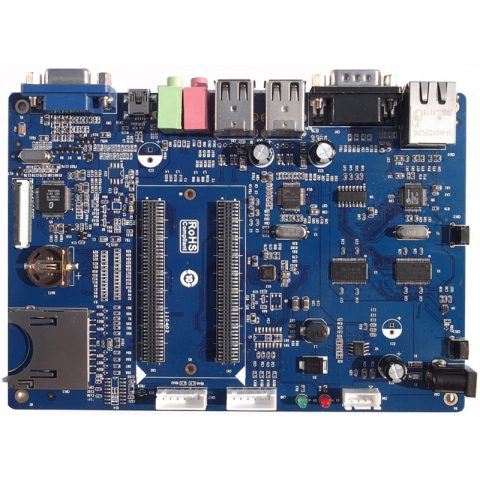

SBC8140 Single Board Computer
-
Serial cable (DB9-to-DB9)
-
5V@2A Power adapter
-
10-pin JTAG cable
-
JTAG board(convert 10Pin to 14 pin JTAG interface)
-
Optional TFT LCD Display Module
-
4.3 inch TFT LCD (With Touch panel)
-
7 inch TFT LCD (With Touch panel)
-
