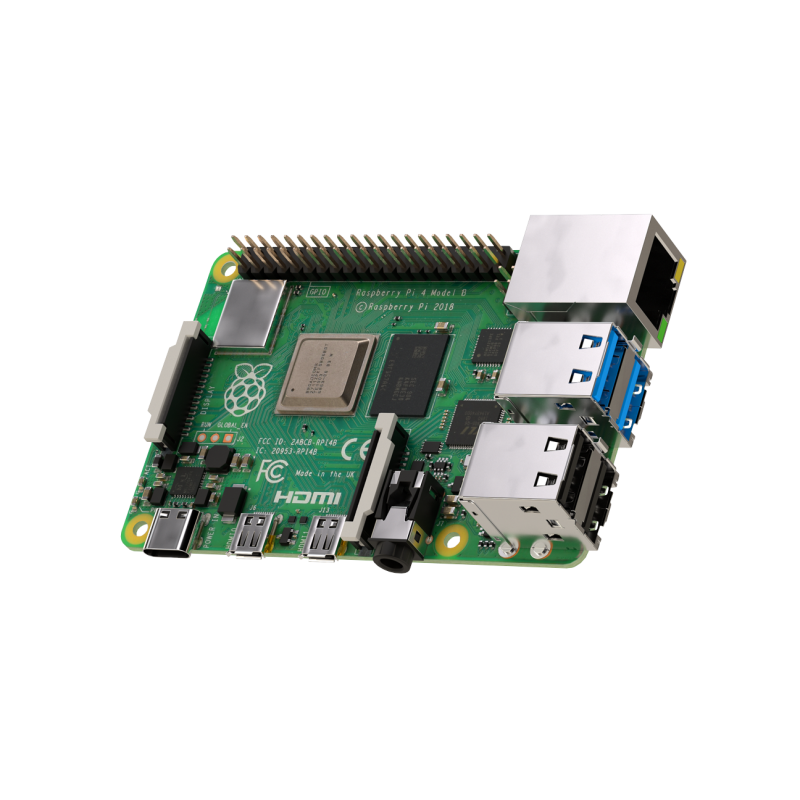

The Raspberry Pi 4 Model B is the low cost board of the fourth generation Raspberry Pi family. It’s a high performance based on 64-Bit quad core processor with other improvements such as dual micro HMDI ports and 2 of the four USB ports are now USB 3.0 and the new USB-C power connector which is the emerging standard for charging and transferring data. Faster Ethernet, PoE capability via a PoE HAT, dual band wireless 2.4/5GHz and Bluetooth 5.0/BLE makes this board ideal for your next IoT or SBC based project.
| BROADCOM SOC: | Broadcom 2711 |
| PROCESSOR: | ARM Cortex A72 |
| No. of CORES: | Quad |
| CPU SPEED: | 1.5GHz |
| MEMORY: | 1GB |
| GRAPHICS (GPU): | VideoCore VI 4kp60 |
| Video Ports: | 2 x micro HDMI |
| USB PORTS: | 2 x USB3.0 & 2 x USB2.0 |
| GPIO HEADER: | 40 |
| A/V JACK: | 3.5mm Stereo |
| MICRO SD CARD SLOT: | Yes |
| MIPI CSI DISPLAY PORT: | Yes |
| CSI CAMERA PORT: | Yes |
| ETHERNET: | Gigabit |
| WLAN: | 802.11b/g/n/ac 2.4/5GHz |
| BLUETOOTH: | Yes – Bluetooth 5.0 |
| BLUETOOTH LOW ENERGY ( BLE ): | Yes |
| PoE ENABLED: | Yes |
| eMMC FLASH: | 1GB |
| HAT COMPATIBLE: | Yes |
| DIMENSIONS (mm): | 85 x 56 x 17 |
| WEIGHT (g): | 45 |
| POWER INPUT: | 5.1V / 3A |
| Power Connector: | USB-C |
| Options | 2GB, 4GB, 8GB |
|---|
