This receiver is useful for design debugging, characterization/tuning, Qi pre-compliance testing and production testing.
Description

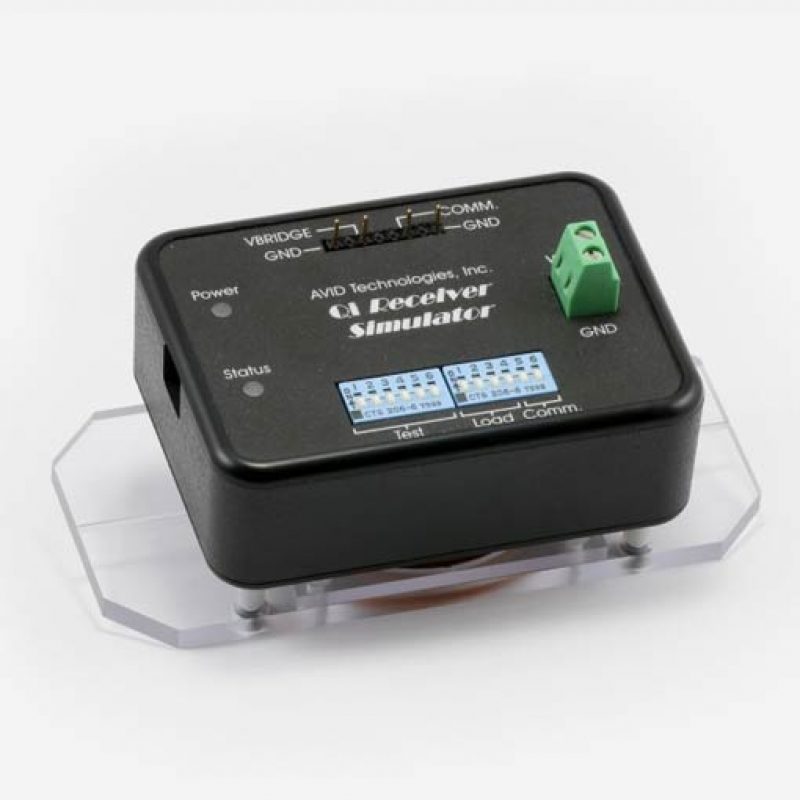

The Qi medium power FOD receiver is a 15W receiver that can be used to test the operation and FOD performance of Qi wireless transmitter. DIP switches on top of the FOD receiver are used to program received power offsets and to change internal loads. The FOD receiver accurately measures received power (PPR) and sends the WPC specified received power packets to the transmitter. The receiver is useful for design debugging, characterization/tuning, Qi pre-compliance testing and production testing.
-
Compatibility with v1.2, coil type similar to TPR#MP3
-
Stand alone, easy to use device in rugged enclosure & DC resistive communication modulators
-
LEDs for device status, +12VDC +/- 5%, 1.25A max output
-
Rectified voltage
-
Test points for bridge voltage and digital communication data
-
Factory calibrated and characterized using AVID FOD transmitter
-
Selectable (PPR) offsets up to +/- 630mW in 5.0mW or 15.0mW steps
-
Accurately measures and reports PPR per WPC specifications
-
Selectable internal loads up to 2.0W in 0.25W steps
-
Screw terminals for connecting external loads up to 15W
产品简介
Qi中功率FOD Receiver是一款接收功率为15W的接收器，用于测试Qi无线发射器的FOD性能，FOD接收器上的DIP开关用于烧写接收到的供电偏移量，以改变内部负载。FOD接收器能精确测量接收功率（PPR），并把WPC标准的接收功率包返回给发射器。这款接收器非常适用于设计调试、表述/调谐、Qi产前测试以及生产测试。
技术特性：
l 兼容1.2版本，线圈类型与TPR#MP3类似。
l 独立使用，易使用于有坚固的外壳设备以及直流电阻通信调节器中。
l 具有设备状态LED指示灯，+12V DC +/- 5%，1.25A 最大输出。
l 整流电压
l 自带桥接电压和数字通信数据测试点
l 工业标准，使用AVID FOD发送器。
l 在5mW或者15mW的调节精度中，可选（PPR）偏移量可达+/-630mW。
l 精确测量和报告WPC标准的PPR值
l 在0.25W的调节精度中，可选内部负载可达2W。
l 螺旋式接线柱，可接高达15W的外部负载。
