The FOD Receiver accurately measures received power (PPR) and sends the WPC specified V1.1 packets to the transmitter.
Description
The FOD Receiver accurately measures received power (PPR) and sends the WPC specified V1.1 packets to the transmitter. It is useful for V1.1 design debugging, characterization, Qi pre-compliance testing and production testing.
-

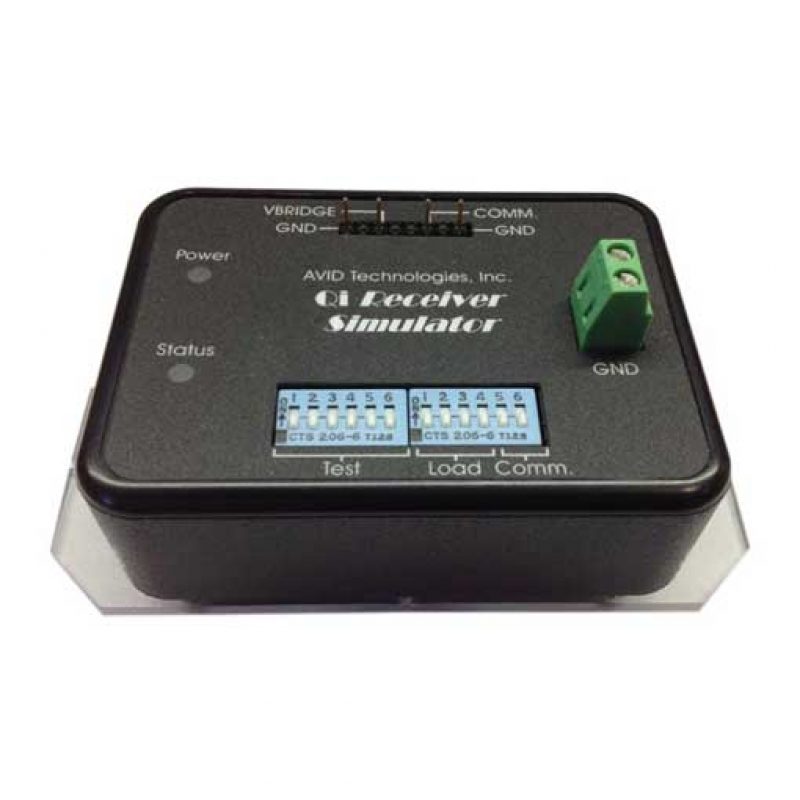

Fully functional Qi V1.1 Receiver
-
Stand alone, easy to use device in rugged enclosure
-
+5VDC output
-
LEDs for device status
-
Test points for bridge voltage and digital comm. data
-
Uses same coil as FOD test receiver TPR#5 specified by WPC Coil is
-
Factory calibrated and characterized using AVID FOD Transmitter
-
Selectable (PPR) offsets up to +/- 630mW in 5.0mW or 10.0mW steps
-
Accurately measures and reports PPR per WPC V1.1 spec
-
Reports proprietary 16 bit high resolution PPR values in addition to the WPC required 8-bit packets
-
Selectable internal loads up to 2.0W in 0.25W steps
-
Screw terminals for connecting external loads up to 5.0W
-
External load board (included) has min, max, and in between loads for testing and characterizing transmitter FOD performance
产品简介
Qi FOD Receiver v1.1可以精确测量接收功率（PPR），并发送WPC v1.1标准的数据包给发送器，它非常适合于V1.1的设计调试，描述、Qi摸底测试以及生产测试。
技术特性：
l 全功能Qi V1.1接收器
l 独立使用，易使用于有坚固的外壳设备中
l +5V直流电压输出
l 设备状态LED指示灯
l 自带桥接电压和数字通信数据测试点
l 使用与FOD测试接收器TPR#5 相同的WPC线圈
l 工厂校准，使用AVID FOD发送器的特点。
l 在5mW或者10mW的调节精度中，可选（PPR）偏移量达+/-630mW。
l 精确测量和报告WPC V1.1 PPR值
l 除WPC要求的8位数据包外，还全面报告16bit高精度PPR值。
l 在0.25W的调节精度下，可选内部负载可达2W
l 螺旋式接线柱，可接最高5W的外部负载。
l 外部负载板（包括）有最小值、最大值以及在此之间的负载值，其用于在测试和表示发射器FOD性能。
